Normál csavarbehajtók

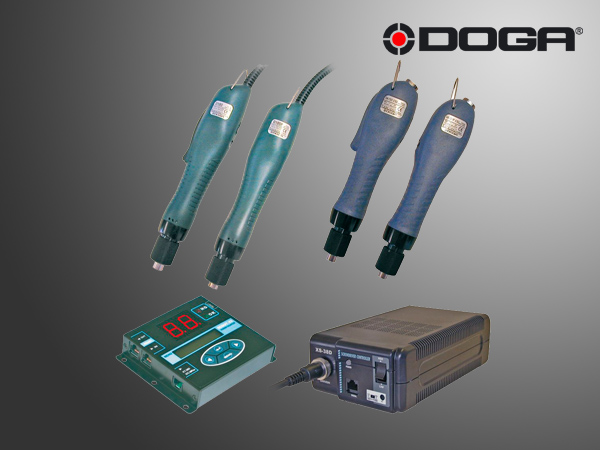

GA Series


GA-150 / GA-150 P


  • designed for operator comfort: light weight and small sized, full ergonomic design

  • designed for productivity: Accurate shut-off clutch (+/- 3%), speed control, maintenance free (shut-off operated by magnetic sensor - no wearing)

  • designed for quality: ESD free, External torque adjustment scale, soft start, double hit mode


Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Drive size Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GA 150 ESD 0,08 - 0,78 700 - 1000 Fem. Hex 1/4" Lever 0,31 < 70 < 2,5 6-1040011
GA 180 ESD 0,1 - 1,18 450 - 700 Fem. Hex 1/4" Lever 0,31 < 70 < 2,5 6-1040012
GA 150 P ESD 0,08 - 0,78 700 - 1000 Fem. Hex 1/4" Push to start 0,31 < 70 < 2,5 6-1040013
GA 180 P ESD 0,1 - 1,18 450 - 700 Fem. Hex 1/4" Push to start 0,31 < 70 < 2,5 6-1040014

Standard equipment (supplied with the tool) Részletes információk »

  • Power supply cable 3 m
  • 2 carbon brushes
  • 2 bits Philips n° 0, n° 1
  • Clutch adjustment springs
  • Suspension ring
  • User manual

Accessories & Wear spare parts Részletes információk »

Carbon brush


6-1041219

Brush cap


6-1041203

Torque ring cover Black


6-1041212

Ring for arm mounting


6-1041500

Extra long cable 5 m


6-1041215

Spiral cable 5 m


6-1041216

Screw vacuum Pick-up


6-1041214

DO Series


DO-450 / DO-250 P


  • designed for operator comfort: light weight and small sized, full ergonomic design

  • designed for productivity: Robust and durable - Suitable with high production rate, Accurate shut-off clutch (+/- 3%), speed control, maintenance free(shut-off operated by magnetic sensor - no wearing)

  • designed for quality: ESD free, External torque adjustment scale


Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Drive size Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
DO 250 ESD 0,2 - 2,45 630 - 1050 Fem. Hex 1/4" Lever 0,72 < 70 < 2,5 6-1040036
DO 350 ESD 0,2 - 3,43 460 - 750 Fem. Hex 1/4" Lever 0,72 < 70 < 2,5 6-1040037
DO 450 ESD 0,3 - 4,41 330 - 550 Fem. Hex 1/4" Lever 0,72 < 70 < 2,5 6-1040038
DO 250 P ESD 0,2 - 2,45 630 - 1050 Fem. Hex 1/4" Push to start 0,72 < 70 < 2,5 6-1040040
DO 350 P ESD 0,2 - 3,43 460 - 750 Fem. Hex 1/4" Push to start 0,72 < 70 < 2,5 6-1040041
DO 450 P ESD 0,3 - 4,41 330 - 550 Fem. Hex 1/4" Push to start 0,72 < 70 < 2,5 6-1040042

Standard equipment (supplied with the tool) Részletes információk »

  • Power supply cable 3 m
  • 2 carbon brushes
  • 2 bits Philips n° 0, n° 1
  • Clutch adjustment springs
  • Suspension ring
  • User manual

Accessories & Wear spare parts Részletes információk »

Carbon brush


6-1041219

Brush cap


6-1041203

Torque ring cover Black


6-1041212

Ring for arm mounting


6-1041500

Extra long cable 5 m


6-1041215

Spiral cable 5 m


6-1041216

Pistol Grip Kit


6-1041412

Controllers


XS-38D / XT-30D


  • High productivity: Thanks to the unique SMPS technology (switching modulation), the connected screwdriver always delivers constant rotation speed and fastening force even for demanding fastening process (self-tapping tightening, soft joint...)

  • Comfort: Light weight and compact

  • Durability: Built-in Over heat and Over Current protection prevent the screwdriver from damage or bad use

  • Economy: Maintenance free

  • Quality: Easy monitoring of your fastenings thanks to torque reached signal output, start and stop signal outputs, selectable softstart, Double-hit mode for soft joint, Screwdriver lock signal input for PLC (prevents screwdrivers activation until PLC input signal - on XS-38 D only).


Properties Részletes információk »

Model Power (AC) (V) Output voltage low (V) Output voltage high (V) Rated output (A) Max. output (A) Weight (Kg) Size (mm) For screw-drivers Code
XT-30D 220 20 30 1,2 2 0,33 70x130x40 GA Series 6-1040062
XS-38D
V4.3*		 220 20
30		 38
30		 2,5 5 0,7 90x150x55 DO Series
GA Series		 6-1040063

* XS-38D V4.3 : Signal Type selectable
Normally close or Normally open for NPN or PNP Communication



PLC Interface for XS-38D Részletes információk »

Interface U-3
(for NC protocol)

Code: 6-1041217

  • Model U-3
  • Weight: 75g
  • Size: 75(W) x 61(D) x 20(H)mm
  • Type of signals:
    • open collector by optocoupler (reversed)
    • relay contact N.C
    • relay contact N.O

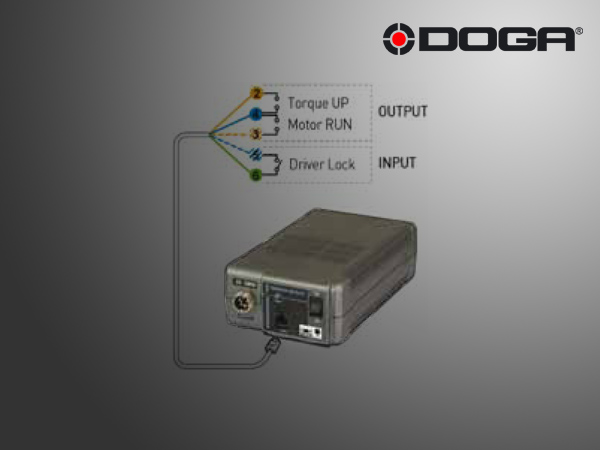

Converted signals by U-3 converter from XS-38D

N° Wire Color Signal XS-38D Interface converter
1 ORANGE Spare
2 ORANGE STRIPE Torque Up
3 BLUE Motor Run
4 BLUE STRIPE Common for 2&3 wire
5 GREEN Motor Lock
6 GREEN STRIPE
7 BROWN No use
8 BROWN STRIPE Spare



Interface U-3
(for NC protocol)

Code: 6-1041217

  • Model U-3B
  • Weight: 75g
  • Size: 75(W) x 61(D) x 20(H)mm
  • Type of signals:
    • open collector by optocoupler (reversed)
    • relay contact N.C
    • relay contact N.O

Converted signals by U-3B converter from XS-38D

N° Wire Color Signal XS-38D Interface converter
1 ORANGE Spare
2 ORANGE STRIPE Torque Up
3 BLUE Motor Run
4 BLUE STRIPE Common for 2&3 wire
5 GREEN Motor Lock
6 GREEN STRIPE
7 BROWN No use
8 BROWN STRIPE Spare
