Szénkefe nélküli csavarbehajtók






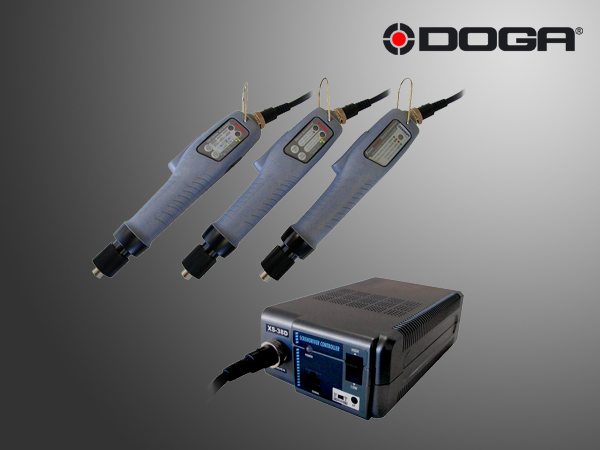

GX Series

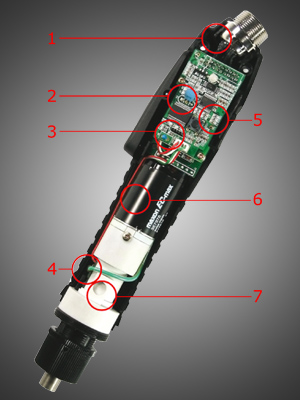

  1. ESD Free - Conductive body

  2. Built-in control board - Digital speed control, better torque accuracy

  3. Overload - Over Voltage & Heat Protection

  4. Clutch activated by sensors ( No maintenance)

  5. Trigger start and reverse button activated THROUGH SENSORS (Maintenance free)

  6. Brushless Motor (Made in Switzerland) Designed for heavy duty cycle time

  7. Shockless Clutch (GXS models)

Standard Features


  • Digital speed settings

  • Soft start settings

  • Brushless motor

  • Over current & heat alarms

  • Start, reverse and shut-off activated by sensors



GX Series - 30V

30 Volts • Torque range : 0,02 to 1,2 Nm - Auto-shut off


GX/GXS/GXT/GXA


  • Higher productivity: thanks to high Brushless motor efficiency!

  • Higher comfort: thanks to improved ergonomy and reduced sound level and heat!

  • Increased economy: thanks to brushless motor (triple the life time of the motor).

  • Reduced maintenance: the best Mean Time Between Failure (MTBF) ever reached until now (no carbon brush, trigger and reverse contactless switches, over-heat and over-current built in alarms protectiong the screwdrivers).

  • Increased production quality: thanks to ESD protection, accurate clutch and Softstop clutch Mechanism.


Micro Torque GX Series Részletes információk »

features SOFT STOP clutch and Digital speed setting

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GX 035 ESD 0,02 - 0,34 300 to 1100 Lever 0,24 < 70 < 2,5 6-1040077
GX 045 ESD 0,04 - 0,45 300 to 700 Lever 0,24 < 70 < 2,5 6-1040078

STANDARD Series Részletes információk »

GX with digital speed and soft start

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GX 80 ESD V2 0,09 - 0,8 450 to 1000 Lever 0,35 < 70 < 2,5 6-1021025
GX 120 ESD V2 0,2 - 1,2 300 to 700 Lever 0,35 < 70 < 2,5 6-1021026
GX 80 P ESD V2 0,09 - 0,8 450 to 1000 Push to start 0,35 < 70 < 2,5 6-1021027
GX 120 P ESD V2 0,2 - 1,2 300 to 700 Push to start 0,35 < 70 < 2,5 6-1021028

SOFT STOP Series: GXS Részletes információk »

built-in special clutch mechanism providing soft shut-off to protect fragile parts

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GXS 80 ESD V2 0,09 - 0,8 450 to 1000 Lever 0,35 < 70 < 2,5 6-1021020
GXS 120 ESD V2 0,2 - 1,2 300 to 700 Lever 0,35 < 70 < 2,5 6-1021021

TIMER & AUTOREVERSE Series: GXT Részletes információk »

fasten at preset angle/time, Automatic Reverse/forward, stop sequence - ideal for tapping operation, helicoil fastening, pre-assembly...

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GXT 80 ESD V2 0,09 - 0,8 450 to 1000 Lever 0,35 < 70 < 2,5 6-1021036
GXT 120 ESD V2 0,2 - 1,2 300 to 700 Lever 0,35 < 70 < 2,5 6-1021037

FIXTURED SPINDLES Series: GXA Részletes információk »

for automation

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GXA 035 ESD V3 0,03 - 0,35 300 to 1100 Remote 0,45 < 70 < 2,5 6-1040073
GXA 045 ESD V3 0,04 - 0,45 300 to 700 Remote 0,45 < 70 < 2,5 6-1040078
GXA 080 ESD V3 0,1 - 0,8 450 to 1000 Remote 0,45 < 70 < 2,5 6-1040074
GXA 120 ESD V3 0,2 - 1,2 300 to 700 Remote 0,45 < 70 < 2,5 6-1040075


GX Series - 40V

40 Volts • Torque range : 0,28 to 4,4 Nm - Auto-shut off


GX/GXT/GXA


  • Higher productivity: thanks to high Brushless motor efficiency!

  • Higher comfort: thanks to improved ergonomy and reduced sound level and heat!

  • Increased economy: thanks to brushless motor (triple the life time of the motor).

  • Reduced maintenance: the best Mean Time Between Failure (MTBF) ever reached until now (no carbon brush, trigger and reverse contactless switches, over-heat and over-current built in alarms protectiong the screwdrivers).

  • Increased production quality: thanks to ESD protection, accurate clutch and Softstop clutch Mechanism.


STANDARD Series Részletes információk »

GX with digital speed setting and soft start

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GX 035 ESD 0,02 - 0,34 300 to 1100 Lever 0,24 < 70 < 2,5 6-1040077
GX 045 ESD 0,04 - 0,45 300 to 700 Lever 0,24 < 70 < 2,5 6-1040078

SOFT STOP Series: GXS Részletes információk »

built-in special clutch mechanism providing soft shut-off to protect fragile parts

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GX 80 ESD V2 0,09 - 0,8 450 to 1000 Lever 0,35 < 70 < 2,5 6-1021025
GX 120 ESD V2 0,2 - 1,2 300 to 700 Lever 0,35 < 70 < 2,5 6-1021026
GX 80 P ESD V2 0,09 - 0,8 450 to 1000 Push to start 0,35 < 70 < 2,5 6-1021027
GX 120 P ESD V2 0,2 - 1,2 300 to 700 Push to start 0,35 < 70 < 2,5 6-1021028

TIMER & AUTOREVERSE Series: GXT Részletes információk »

fasten at preset angle/time, Automatic Reverse/forward, stop sequence - ideal for tapping operation, helicoil fastening, pre-assembly...

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GXT 80 ESD V2 0,09 - 0,8 450 to 1000 Lever 0,35 < 70 < 2,5 6-1021036
GXT 120 ESD V2 0,2 - 1,2 300 to 700 Lever 0,35 < 70 < 2,5 6-1021037

FIXTURED SPINDLE FOR AUTOMATION Részletes információk »

automatic spindle with remote start

Model Torque range (Nm) Rotation speed (rpm) Starting system Weight (kg) Noise Level (dBa) Vibration Level (m/sec2) Code
GXA 035 ESD V3 0,03 - 0,35 300 to 1100 Remote 0,45 < 70 < 2,5 6-1040073
GXA 045 ESD V3 0,04 - 0,45 300 to 700 Remote 0,45 < 70 < 2,5 6-1040078
GXA 080 ESD V3 0,1 - 0,8 450 to 1000 Remote 0,45 < 70 < 2,5 6-1040074
GXA 120 ESD V3 0,2 - 1,2 300 to 700 Remote 0,45 < 70 < 2,5 6-1040075


Controller


XS-40D


  • High productivity: Thanks to the unique SMPS technology (switching modulation), the connected screwdriver always delivers constant rotation speed and fastening force even for demanding fastening process (self-tapping tightening, soft joint...).

  • Comfort: Light and compact.

  • Durability: Built-in Over heat and Over Current protection prevent the screwdriver from damage or bad use.

  • Economy: Maintenance free.

  • Quality : Easy monitoring of your fastenings thanks to torque reached signal output, start and stop signal outputs, selectable softstart, Double-hit mode for soft joint, Screwdriver lock signal input for PLC (prevents screwdrivers activation until PLC input signal).


Controller Részletes információk »



Model Power (AC) (V) Output voltage low (V) Output voltage high (V) Rated output (A) Weight (Kg) Size (mm) For screwdrivers 30 and 40 Volts Code
XS-40D 220 30 40 3 0,86 90x150x55 GX Series 6-1040065
XS-40D FA 220 30 40 3 0,86 90x150x55 GXA Series 6-1040080

SCOUT Poka yoke controller Részletes információk »

Suitable with XS-38D, XS-38D FA, XS-40D

Set up to 7 tightening programs

Tightening monitoring:

  • Detects cross threading, omissions, double tightening, unfinished rundown.
  • Screws counting, OK-NG fastening, OK-NG cycle.
  • Buzzer Alert, displays error conditions.

Sequence management:

  • Parts detection, parts OK-NG sorting through PLC.
  • Storage of several tightening settings with the parameter mode.


Model Key features Inputs features Outputs features Code
SCOUT II
  • Password protection
  • Display of total fastened screw number
  • Display of remaining screw number
  • Built-in fastening time measurement function
  • Alarms: leds + several buzzers
  • Easy programming by scroll menu and self learning mode
  • Wall mountable
  • Cycle start
  • Driver lock/unlock
  • OK
  • NG
  • Buzzer alarm
  • Cycle end
 6-1074000

Delivered with:

  • Connection cable on controller
  • I/O connection cable

Easy programming thanks to the Scout II manager software!


Accessories

For GX Series


Screw Vacuum Pickups Részletes információk »

for GX - 30 Volts only

Vacuum pick up
Code: 4-1041214


Vacuum pick up assembly is provided without the sleeve (on request).


The recommended bit length is 44 mm.


Thread size: 4mm.


  1. BIT LENGTH
  2. Mouthpiece
  3. Vacuum Pickup
  4. Driver

Accessories Részletes információk »



Torque ring cover Black


6-1041213 (for GX 30 Volts)
6-1041205 (for GX 40 Volts)

Ring for arm mounting


for GX (30 Volts) only
6-1000223

Spiral cable 3,5 m



6-1010413

Lock key*



6-1044850

Lock key firmware upgrade*



6-1000222

Pistol Grip Kit



6-1010420

Angle head


for 30 Volts and 40 Volts
6-1000220 | 6-1000221

* Available only for standard series GX 30 & 40 Volts.

PLC Interface Részletes információk »



Interface U-3
(for NC protocol)

Code: 6-1041217

  • Model U-3B
  • Weight: 75g
  • Size: 75(W) x 61(D) x 20(H)mm
  • Type of signals:
    • open collector by optocoupler (reversed)
    • relay contact N.C
    • relay contact N.O

Converted signals by U-3B converter from XS-40D

N° Wire Color Signal XS-38D Interface converter
1 ORANGE Spare
2 ORANGE STRIPE Torque Up
3 BLUE Motor Run
4 BLUE STRIPE Common for 2&3 wire
5 GREEN Motor Lock
6 GREEN STRIPE
7 BROWN No use
8 BROWN STRIPE Spare
