Pneumatikus csavarbehajtók







DSL Series


0,4 to 5 Nm



  • 150 W forward and reverse screwdrivers
  • Shut-off clutch
  • Straight, pistol, angle head
  • Push-to-start, lever-start or trigger-start
  • Torque-up signals (2CS)
  • 0,4 to 5 Nm - Up to 2200 rpm



Straight


Standard equipments:

  • torque adjusting key
  • suspension ring
  • additional springs

Options:

  • exhaust air sleeve
  • ring for torque reaction system Code 4-1584401

Note:

  • air inlet diameter: 6 mm
  • 1/4 female hex drive
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Straight - Push to start
DSL-A35P1400 0,4 - 3,5 1400 0,59 73 38x230 5,5 4-1566125 Not available
DSL-A45P950 0,4 - 4,5 950 0,59 73 38x230 5,5 4-1566126 Not available
DSL-A50P650 0,4 - 5 650 0,59 73 38x230 5,5 4-1566127 Not available
DSL-A50P150* 0,4 - 4,5 150 0,59 73 38x230 5,5 4-1588001 Not available
Straight - Lever start
DSL-A35L1400 0,4 - 3,5 1400 0,59 73 38x230 5,5 4-1566128 4-1520016
DSL-A45L950 0,4 - 4,5 950 0,59 73 38x230 5,5 4-1566129 4-1520017
DSL-A50L650 0,4 - 5 650 0,59 73 38x230 5,5 4-1566130 4-1520018
DSL-A50L150* 0,4 - 4,5 150 0,59 73 38x230 5,5 4-1588002 NC


Pistol


Standard equipments:

  • torque adjusting key
  • suspension ring
  • additional springs

Note:

  • air inlet diameter: 6 mm
  • 1/4 female hex drive
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Pistol - Trigger start
DSL-PA22G2200 06 - 2,2 2200 0,70 71 31x178x156 6 4-1505185 NC
DSL-P35G1400 0,4 - 3,5 1400 0,70 71 31x178x156 6 4-1566131 4-1520019
DSL-P45G950 0,4 - 4,5 950 0,72 71 31x178x156 6 4-1566132 4-1520020
DSL-P50G650 0,4 - 5 650 0,72 71 31x178x156 6 4-1566133 4-1520021

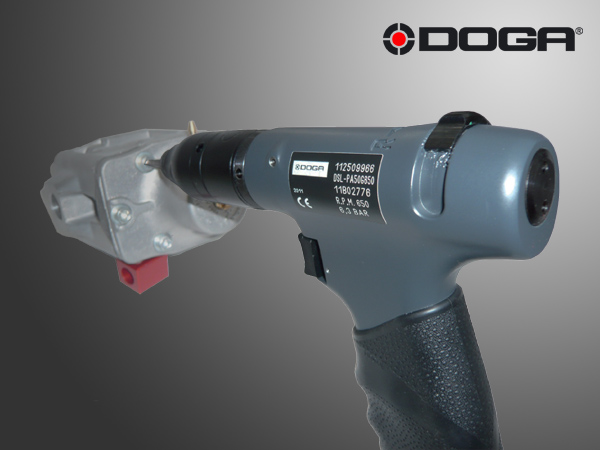

Pistol with advanced handle - Trigger start
DSL-PA35G1400 0,4 - 3,5 1400 0,72 71 37x209x157 6 4-1566134 4-1520022
DSL-PA45G950 0,4 - 4,5 950 0,72 71 37x209x157 6 4-1566135 4-1520023
DSL-PA50G650 0,4 - 5 650 0,72 71 37x209x157 6 4-1566136 4-1520024


Angle head


Standard equipments:

  • torque adjusting key
  • suspension ring
  • additional springs

Options:

  • exhaust air sleeve
  • 1/4 female hex drive

Note:

  • air inlet diameter: 6 mm
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Angle nutrunner - Lever start
DSL-RA30L1400 0,8 - 3 1400 0,70 73 1/4" 5,5 4-1566100 4-1520001
DSL-RA40L950 0,8 - 4 950 0,70 73 1/4" 5,5 4-1566101 4-1520002
DSL-RA50L650 0,8 - 5 650 0,70 73 1/4" 5,5 4-1566102 4-1520003
DSL-RA50L150* 0,8 - 5 150 0,70 73 1/4" 5,5 4-1588000 NC



DSI Series


3,5 to 26 Nm



  • 260 W forward and reverse screwdrivers
  • Shut-off clutch
  • Straight, pistol, angle head
  • Push-to-start, lever-start or trigger-start
  • Torque-up signals (2CS)
  • 3,5 to 26 Nm - Up to 2000 rpm



Straight


Standard equipments:

  • torque adjusting key
  • suspension ring

Note:

  • Air inlet diameter: 8mm
  • quick release 1/4 female Hex. drive
  • 1/4 gaz air inlet

Options:

  • exhaust air sleeve
  • ring for reaction system:
    • for DSI-A40 & DSI-A50 Code 4-1584410
    • for DSI-A80, A95 et A120 Code 4-1584400
  • vaccum pick up: Code 4-1500682

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Straight - Push to start
DSI-A40P2000 0,4 - 4 2000 0,80 75 40x235 6 4-1547770 Not available
DSI-A80P1000 3,5 - 8 1000 0,80 75 40x235 6 4-1566105 Not available
DSI-A95P800 3,5 - 9,5 800 0,90 75 40x235 6 4-1566106 Not available
DSI-A120P400 3,5 - 12 400 0,90 75 40x235 6 4-1566107 Not available
Straight - Lever start
DSI-A40L2000 0,4 - 4 2000 0,85 73 40x234 6 4-1547772 NC
DSI-A50L1300 0,4 - 5 1300 0,85 75 40x234 6 4-1547773 NC
DSI-A80L1000 3,5 - 8 1000 0,93 75 40x234 6 4-1566108 4-1520006
DSI-A95L800 3,5 - 9,5 800 0,93 75 40x234 6 4-1566109 4-1520007
DSI-A120L400 3,5 - 12 400 0,93 75 40x234 6 4-1566110 4-1520008


Pistol


Standard equipments:

  • torque adjusting key
  • suspension ring

Note:

  • air inlet diameter: 8mm
  • quick release 1/4 female hex drive
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Pistol - Trigger start
DSI-P40G2000 0,4 - 4 2000 0,87 73 38x190x155 7 4-1547774 NC
DSI-P80G1000 3,5 - 8 1000 0,87 73 38x190x155 7 4-1566111 4-1520009
DSI-P95G800 3,5 - 9,5 800 0,97 73 38x210x155 7 4-1566112 4-1520010
DSI-P120G400 3,5 - 12 400 0,97 73 38x210x155 7 4-1566113 4-1520011
Pistol with advanced handle - Trigger start
DSI-PA50G1300 0,4 - 5 1300 0,97 74 39x195x160 7 4-1547777 NC
DSI-PA80G1000 3,5 - 8 1000 0,97 74 39x195x160 7 4-1566114 4-1520012
DSI-PA95G800 3,5 - 9,5 800 1,05 74 39x210x160 7 4-1566115 4-1520013
DSI-PA120G400 3,5 - 12 400 1,05 74 39x210x160 7 4-1566116 4-1520014
DSI-PA120G700 3 - 12 700 1,16 77 39x210x160 9 4-1566117 4-1520015



Angle head


Standard equipments:

  • torque adjusting key

Options:

  • exhaust air sleeve
  • torque reached signal
  • suspension ring (code 4-1505258)
  • 1/4 female hex drive (except RA90L900)

Note:

  • air inlet diameter: 8mm
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Angle nutrunner - Lever start
DSI-RA90L900 2,5 - 9 900 1,20 77 3/8" 10 4-1550005 NC
DSI-RA140L600 3 - 14 600 1,40 77 3/8" 10 4-1550006 NC
DSI-RA260L350 11,5 - 26 350 1,45 77 3/8" 10 4-1550007 NC



DSH Series


7 to 60 Nm



  • 400 W forward and reverse screwdrivers
  • Shut-off clutch
  • Straight, pistol, angle head
  • Push-to-start, lever-start or trigger-start
  • Torque-up signals (2CS)
  • 7 to 60 Nm - Up to 400 rpm



Straight


Standard equipments:

  • torque adjusting key
  • suspension ring

Options:

  • vaccum pick up (code 4-1500683)

Note:

  • Air inlet diameter: 8mm
  • quick release 1/4 female Hex. drive
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Straight - Lever to start
DSH-A240L450 7 - 24 450 1,67 80 46x345 10 4-1566120 4-1520004


Pistol


Standard equipments:

  • torque adjusting key
  • suspension ring
  • auxiliary grip

Note:

  • air inlet diameter: 8mm
  • quick release 1/4 female Hex. drive
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Pistol with advanced handle - Trigger start
DSH-PA240G450 7 - 24 450 1,75 80 46x265x175 10 4-1566121 4-1520005



Angle head


Standard equipments:

  • torque adjusting key

Options:

  • exhaust air sleeve
  • torque reached signal
  • suspension ring (code 4-1505257)

Note:

  • air inlet diameter: 8mm
  • 1/4 gaz air inlet

Properties Részletes információk »

Model Torque range (Nm) Rotation speed (rpm) Weight (kg) Noise Level (dBa) Output Average air consumption (L/s) Code
Std 2CS
Angle nutrunner - Lever start
DSH-RA400L400 17,5 - 40 400 2,05 77 3/8" Male square 13 4-1520202 Contact us
DSH-RA600L300 26 - 60 300 2,30 77 1/2" Male square 13 4-1520203 Contact us



Accessories / Options

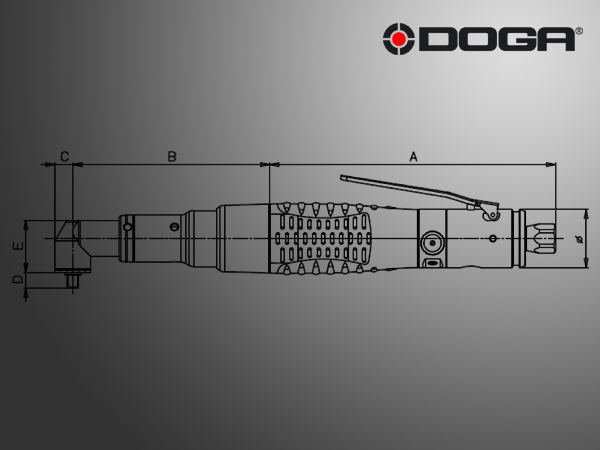

DSL-RA Részletes információk »

Model A B C D E Ø
DSL-RA 157 109 10 8,5 20 30

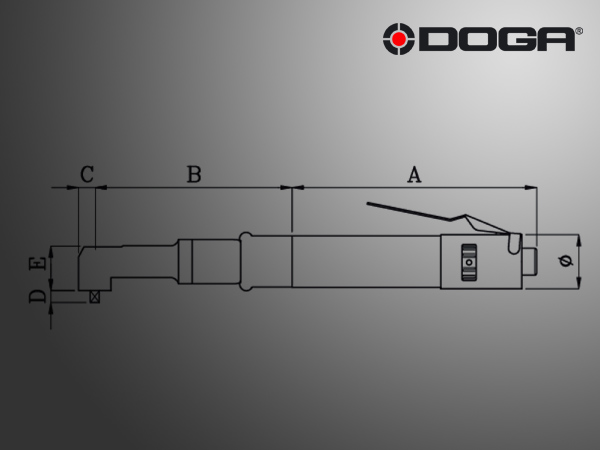

DSI-RA / DSH-RA Részletes információk »

Model A B C D E Ø
DSI-RA90L900 195 97 12,5 12 30 40
DSI-RA140L600 195 125 14 12 34,5 40
DSI-RA260L350 180 137 14 12 34,5 40
DSH-RA400L400 240 163 16 12 40 40
DSH-RA600L300 240 178 20 16,5 45,5 40
